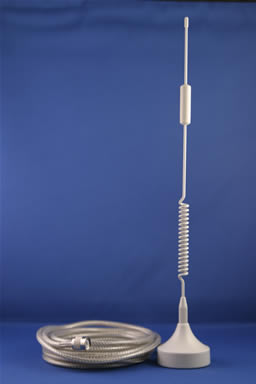

5dB 13 inch Multi-Band Magnetic Mount Antenna

This Universal Magnetic Mount will bring in the signal to your Air Card or Modem!   Multi Band from 700 mHz up to 2500 mHz.

13 inch 5 dB gain, white with 11 ft coaxial cable, Male TNC Connector.

For best results this antenna should be mounted on a minimum 8" diameter metal ground plane.

Requires adapter to attach to your Air Card or Cellphone.   Click Hereto choose the appropriate adapter if you do not already have one for your device.

 This is a 5db gain 13 inch Magnetic Mount Cellular Phone antenna that can be used with any cell phone or booster amplifier. It's small size makes it easily portable, it can be moved easily from vehicle to vehicle.

 It is tuned for ALL Cellular Frequencies (700mHz / 2500mHz) and will work on AWS, CDMA, LTE, TDMA and GSM, HSDPA, and Wimax Networks. The antenna has a universal TNC Male adaptor at the end of the cable.

Frequency Range: 704MHz -2480 MHz

Impedance: 50 Ohms

Antenna Gain: 3.02 dBi @ 704MHz 5.08dBi @ 2480MHz

Omni Polarization Vertical Ground Plane

Connecter:  TNC Male Coax Cable: RG174U / 11’

Height: 13.0”

Weight:   10 oz


To operate properly this Antenna Requires a Metal Ground Plane at least 8 inches across.   Metal Vehicle roof is ideal, locating atop a metal filing cabinet for inside use, even a metal pie tin can be utilized.

Also Requires adapter to attach to your Air Card or Cellphone.   Click Here to choose the appropriate adapter if you do not already have one for your device.
