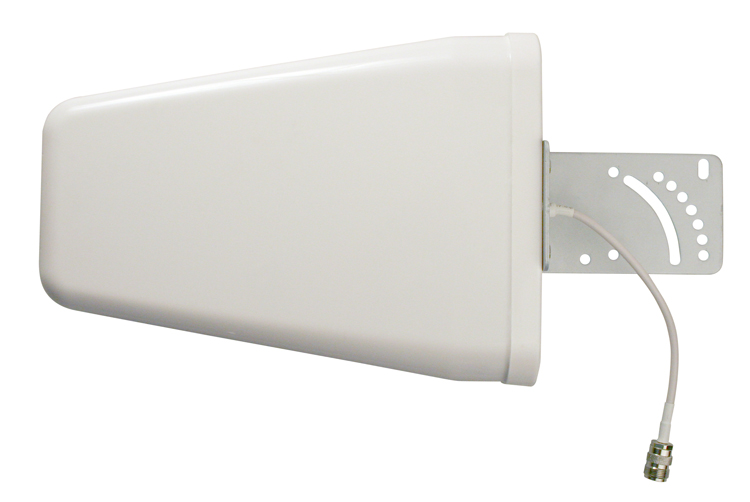

This directional antenna covers all cellular bands, including 700 mHx used bu Verizon LTE is many markets, and 2400 mHx Wimax bands used by Clear and Sprint Wimax systems.
Included mounting hardward but NO coax cable. Fitted with female "N" connector.
Specs
|
Product Number
|
304411 |
304475 |
|
700-800 MHz
Gain
|
7.3 dBi
|
7.3 dBi
|
|
824-894 MHz
Gain
|
8.1 dBi
|
8.1 dBi
|
|
880-960 MHz
Gain
|
7.4 dBi
|
7.4 dBi
|
|
1710-1880 MHz
Gain
|
9.2 dBi
|
9.2 dBi
|
|
1850-1990 MHz
Gain
|
10.6 dBi
|
10.6 dBi
|
|
2110-2170 MHz
Gain
|
10.4 dBi
|
10.4 dBi
|
|
Impedance
|
50 ohms
|
75 ohms
|
|
Max Power
|
100 watts
|
|
Polarization
|
Vertical
|
|
Connector
|
N-Female
|
F-Female
|
|
Material
|
Aluminum
|
|
Length
|
11.42 inches / 29 cm
|
|
Weight
|
3.31 lbs
|
|
Wind Surface Area
|
<465 cm2
|
|
Brackets
|
Max OD 2 inches
|
